Stainless Steel Milk Chilling Tank Milk Chilling Fresh-keeping

کیفیت خوب ماشین دوشش سطل برای فروش
کیفیت خوب ماشین دوشش سطل برای فروش
Good Quality, Good Service!

—— Ruben

Our growth can not leave HAILIAN support, wish for a long time cooperation. Many thanks for your service of our milking system.

—— Mark

Many thanks for HAILIAN providing high quality of equipment based on our requirement, special the good after service. We would like cooperate .

—— Hassam

چت IM آنلاین در حال حاضر

Stainless Steel Milk Chilling Tank Milk Chilling Fresh-keeping

چین Stainless Steel Milk Chilling Tank  Milk Chilling Fresh-keeping تامین کننده
Stainless Steel Milk Chilling Tank  Milk Chilling Fresh-keeping تامین کننده Stainless Steel Milk Chilling Tank  Milk Chilling Fresh-keeping تامین کننده

تصویر بزرگ :  Stainless Steel Milk Chilling Tank Milk Chilling Fresh-keeping

جزئیات محصول:

Place of Origin: China (Mainland)
نام تجاری: HL
گواهی: ISO9001: 200, ISO9001-2008
Model Number: HL-MC6000


Minimum Order Quantity: One set
قیمت: Negotiation
Packaging Details: Pallet
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 30sets/Month
Warranty: One year
Contact Now
توضیحات محصول جزئیات
Item: Stainless Steel Cooling Tank Material: Stainless Steel
Type: Horizontal Type Capacity: 6000L
Thickness: Double Wall Compressor: Copeland

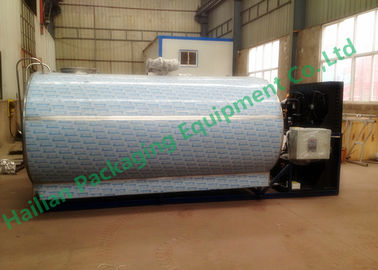

Stainless Steel Milk Chilling Tank for Milk Chilling Fresh-keeping



Quick Detail:


- Capacity: 6000L

- Material: double-wall SS304 stainless steel material
- Compressor: with Copeland compressor

Insulation layer: 60mm - 80mm thickness
- Insulation material: poly prethane material

- Layout: horizontal type milk chiller tank

Refrigerant: R404A(recommended) or R22

- Function: milk chilling and fresh-keeping





The double wall cooling tank, made of stainless steel material, is one horizontal type milk chiller tank and

mainly used in cooling and storage fresh milk, plasma, raw juice and other liquid which need cooling. The

milk cooling tank body has 2 layers, 1.50mm outer thickness and 2.00mm inner thickness, and the chiller

tank has 60-80mm thickness insulation layer which has good heat preservation effect, also the fresh

effect. We utilize the international advanced technology and equip with the importing compress machine

which could keep the milk chilling tank with a long time service life. One micro computer monitor could help

the end user in operating the cooling system. People could control the cooling temperature through

control panel and achieve ideal cooling effect. The stainless steel milk cooler tank has manual agitator, or

automatic agitator in helping user to mixing the liquid.


The chilling and fresh-keeping cooling tank is the most favorable cooling and storage equipment for dairy

farm, milk factory, milk collecting station, food factory, beverage factory and pharmacy industry.





- The cooling tank has horizontal cylindrical stainless steel tank body, easy and convenient opening.
- The cooler tank has smooth head, without any dead angle, and be convenient for cleaning.
- The chiller tank is suitable for big dairy and large scale milk station, with the features of good

unity, space saving, easy to install, a rapid refrigeration and easy to operate.
- The cooling tank body be with polyurethane foam (60-80mm thickness) to keep thermal insulation.
- At the bottom of tank body, is metal support which could fully support the tank body.
- Control panel and digital could be display for the milk cooling tank.
- Double-walled stainless steel, resistance to high temperature and corrosion resistance.
- American Copeland brand compressor, which has a long time use life.





The cooling tank is mainly used in chilling and fresh-keeping of liquid, preserving the liquid in an ideal

temperature and preventing the bacterium or deterioration, especially for cooling milk, this tanker plays an

important role. The stainless steel cooling tank is the normal colling equipment for large pasture and

farms, milk station, milk factory, food and beverage industry factories.








Compressor Power


Compressor Brand



double-walled, SS304 material


Inner: 2.00mm; Outer:1.50mm



Cooling Capacity



adjust automatic

Temperature range

-10 º C -50 º C


manual or automatic

Agitator power


Agitator rotate speed






Insulated Layer


Support material




Competitive Advantage:


1. Cooling tank has small, medium and big capacity for clients choosing, from 500L to 10000L;
2. The Copeland compressor keep the chiller tank with a long time service life;
3. Reasonable layout design, easy to ship, install, operate, clean and maintain;

4. Special material has good heat preservation and fresh effect during using;

5. Vertical type and horizontal type chilling tank layout for choosing.

Stainless Steel Milk Chilling Tank  Milk Chilling Fresh-keeping
