محل منبع: | Jiangsu, China |
نام تجاری: | HL |
گواهی: | SGS, FDA, ISO, CE |
شماره مدل: | HL-MP58D |
مقدار حداقل تعداد سفارش: | 10 |
---|---|
قیمت: | 5 to 15 |
جزئیات بسته بندی: | Box |
زمان تحویل: | 1 to 3 working days |
شرایط پرداخت: | T/T, Western Union, MoneyGram |
قابلیت ارائه: | 5000 pieces |
مدل: | HL-58D | جنس بدنه: | پی وی سی |
---|---|---|---|
وزن: | 0.6 کیلوگرم | دوره: | 0.9 لیتر |
ارتفاع: | 160 میلی متر | طول: | 190 میلیمتر |
برجسته: | ,,dairy cow mattresses |

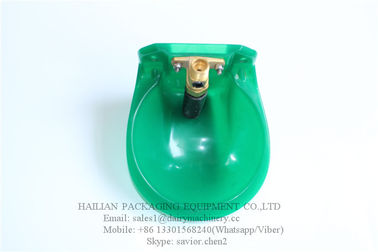

Plastic Milking Machine Spares Sheep Goat Drinking Bowl Goat Water Bowl
Application of Plastic Sheep Goat Drinking Bowl Goat Water Bowl:
We have many models of drinker bowl, can be used for cows, bulls, cattle, horses,deer and
other livestock drinking water.
Features of Plastic Sheep Goat Drinking Bowl Goat Water Bowl:
1. Reset the water designed to ensure a large enough livestock drinking water;
2. Cast iron, stainless steel, Copper and other materials, durable, can be recycled;
3. The fixed amount of water and avoid wasting;
4. Free drinking water, livestock can reduce stress;
5. Simple structure, easy to disassemble, easy to clean;
6. Bowl filled with water device, to avoid drinking excess water drops on the ground, resulting in
waste and ground moisture.
Composition of Plastic Sheep Goat Drinking Bowl Goat Water Bowl:
The main component parts: water bowls filled water bowl, drinking, tongue plate, plugs, screws,
nuts.
Principle of Plastic Sheep Goat Drinking Bowl Goat Water Bowl:
When animal drinking water, arch movable platens, platen push the valve, water flows
from the pipe bowl for cattle to drink, and then under the action of the spring plate reset,
cut water, stop water supply.
Specification of Plastic Sheep Goat Drinking Bowl Goat Water Bowl:
Model |
HL-58D |
Body Material |
PVC |
Weight |
0.6 KG |
Volume |
0.9 L |
Height |
160 mm |
Length |
190 mm |
Width |
185 mm |
Thickness |
7 mm |
Water Hole Material |
Copper |
Plastic Sheep Goat Drinking Bowl Goat Water Bowl Material:
1. Bowl body: plastic PVC;
2. Drinking system: brass, good wear resistance;
Drinking system consist of: the shell, mandrel, seals, springs and spring holder gland.
Spring Wire drinking within more than 1.1mm, drinking water pressure test equipment must be
completed, and the test value must be between 2.5KG ~ 4.5KG, drinking more water may not
leaking
and splashing phenomenon;
3. The tongue plate: weight about 119 ~ 121g;
4. Plug: new materials, threaded, but also with the Quartet, easy rotation fixed installation;
5. Screw: Copper, double thread;
6. Nuts: Copper;
