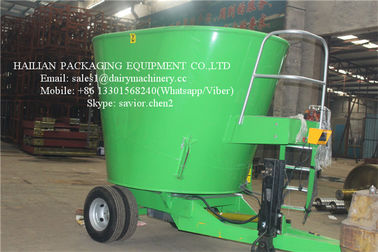

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type

  • Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
  • Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
  • Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
  • Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
  • Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type
جزئیات محصول:
Place of Origin: Jiangsu,China
نام تجاری: HL
گواهی: CE ISO SGS
Model Number: HL-9TMR-9
پرداخت:
Minimum Order Quantity: 1 Set
قیمت: Negotiation
Packaging Details: Standard Packaging
Delivery Time: 5-10 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20 Sets/Month
مخاطب
توضیحات محصول جزئیات
Model Number: HL-TMR-27 Item: 27CBM TMR Mobile Feed Mixer
Moving Blade: 30 pcs Speed(r/min): 26
Power(kw): 150 Size(LxWxH)(mm): 8060X2460X2710
Weight(kg): 8440 Color: Green
برجسته:

,

,

cattle feed mixer

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type

TMR Mixer For Farm Animal Feeding Features:
1. An iron hoop was added on the top of the box to prevent processing materials from overflow
so as to enlarge the volume as well as keeping the machine firm and stable.
2. The auger blade was designed lubricant free which could minimize fault rate.
3. Grade two reducer equipped which will increase torque output, minimize noise, keep the machine
stable and extend the durability.
4. Electronic timer guarantees well time control of stirring.
5. Material outlet was controlled by independent hydraulic pressure so as to control the outlet volume
optionally.
6. The machine was painted with enamel paint which will keep the machine from corrosion.

Description of TMR Mixer For Farm Animal Feeding with Different Capacity:
The ideal TMR Feeding Mixer used for hay, grass and other cow feed; it’s widely used in large and medium farming.

TMR Mixer For Farm Animal Feeding Short Points:
A.TMR = Total Mixed Ration
B.Color: Green (other available)
C.Capacity: 5CBM, 7CBM and 9CBM,12CBM,14,CBM,17CBM,21CBM,27CBM
D.Type: fixed feed mixer and mobile feed mixer


    Model

    Item

HL-9TMR-21

HL-9TMR-27

Capacity(CBM)

21

 27

Auger(PCS)

3 PCS

3 PCS

Blade(PCS)

21 PCS

30 PCS

Blade Type

Abrasion Resistance,

alloy,saw type

Abrasion Resistance,

alloy,saw type

Speed(r/min)

26

26

Power(kw)

 120

 150

Weighing System

   4 Weighing Sensor

   LED Digital Display

4 Weighing Sensor

LED Digital Display

Observation Desk

Anti-Slip

Aluminum Embossing

Anti-Slip

Aluminum Embossing

Size(LxWxH)(mm)

7160X1860X2460

     8060X2460X2710

Weight(kg)

6210

         8440


Applications of TMR Mixer For Farm Animal Feeding:
1. Used in cow/cattle dairy farm;
2. Used to mix coarse fodder with other additives;

Competitive Advantage of TMR Mixer For Farm Animal Feeding:
1.After stirring the feed is more fluffy;
2.Greatly reduce the chance of caking feed;
3.Weighing more accurate;
4.Structure is more simple;
5.Since auger speed is slow, foe the destruction of small feed
6.Easily handle large round or square bales of hay;
7.Since feed on the barrel sidewall pressure is small, the wear rate is much lower mixer;
8.Facts have proved that 85% of farmers have switched to vertical feed mixers.

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type 0

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type 1

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type 2

Electronic Cattle Vertical Feed Mixer 27 CBM Capacity Trailing Type 3
