| Place of Origin: | China Mainland |
| نام تجاری: | HL |
| گواهی: | ISO |
| Model Number: | HL-V550 |
| Minimum Order Quantity: | 1 set |
|---|---|
| قیمت: | Negotiable |
| Packaging Details: | Wooden Crate |
| Delivery Time: | 5 - 7 days |
| Payment Terms: | T/T, Western Union,Pypal |
| Supply Ability: | 500 sets / month |
| Item: | Milking Vacuum Pump | Model: | HL-V550 |
|---|---|---|---|
| Capacity: | 550 liter / min | Power: | 2200w |
| Speed: | 1440rmp | Type: | Fiber Vane Vacuum Pump |
| برجسته: | surge milker vacuum pump, milking machine vacuum pumps,milking machine vacuum pumps |
||

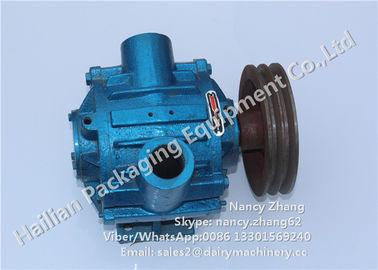

Oil Sealed Rotary Vane Milker Vacuum Pump Milking Machine Spares
Quick Details:
- Model: HL-V550
- Capacity: 550L
- Material: cast iron
- Vacuum pump vane: fiber material vane
- Range: used for milking machine and milking parlor system
Components:
One whole set oil sealed rotary milking vacuum pump consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and some rubber parts. And the pump vane of vacuum pump kits is made of fiber material.
Description:
The oil sealed rotary milking vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum reserve. Various capacity vacuum pump with different motor power be supplied for choosing. The heavy duty body of the oil sealed rotary milking vacuum pump is constructed from chemical resistant cast iron, making it durable to any environmental working conditions.
The function of oil sealed rotary milking vacuum pump is to extract air from the milking machine system through the belt driven. This milking vacuum pump gives flexibility with speeds ranging from about 800–1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines.
Specification:
|
Capacity (L/min) |
250 |
300 |
550 |
850 |
1500 |
2100 |
|
Pump Speed (r/min) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
Vacuum Degree(Kpa) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Noise (Db(A)) |
≤50 |
≤50 |
≤60 |
≤70 |
≤70 |
≤70 |
|
Ultimate Vacuum(Mp) |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
|
Motor Power(kw) |
1.1 |
1.1 |
2.2 |
3 |
4 |
5.5 |
|
Weight(kg) |
13.5 |
14 |
31 |
36 |
57.5 |
69.5 |
|
Size(L×W×H) (mm) |
230*220*220 |
230*220*220 |
280*270*220 |
300*220*220 |
430*230*230 |
390*290*290 |
Note: The above parameters for reference only!
Application:
The oil sealed rotary milking vacuum pump is the heart of the milking machine system, through extracting air, the vacuum pump help the milking machine system finish the sucking fresh milk from animals and collect milk through piping into milk tanker, milk bucket, milk receiver. This milking vacuum pump gives flexibility with speeds ranging from about 800–1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines and milking system.
